High Magnetic Permeability: CP type Mn-Zn power cores typically have high magnetic permeability, which allows them to conduct lines of magnetic force more effectively in electronic circuits, enhancing electromagnetic conversion efficiency.
Low Loss: These cores exhibit lower power losses under high-frequency and high flux density operating conditions, helping to reduce energy losses and improve the overall efficiency of the equipment.
Good Temperature Characteristics: CP type Mn-Zn power cores maintain stable magnetic properties over a wide temperature range, which is particularly important for electronic devices operating in harsh environments.
High Curie Temperature: The Curie temperature is an important parameter for magnetic materials, and CP type Mn-Zn power cores usually have a high Curie temperature, meaning they retain good magnetic performance at elevated temperatures.
Switching Power Supplies: Due to their high magnetic permeability, low loss, and good temperature characteristics, CP type Mn-Zn power cores are widely used in switching power supply transformers, chokes, and other power conversion fields.
Lighting Equipment: In lighting equipment such as LED drivers, CP type Mn-Zn power cores provide stable current output, ensuring normal illumination of lamps.
Automotive Electronics: With the continuous increase in the degree of automotive electrification, the application of CP type Mn-Zn power cores in automotive electronics is becoming more widespread, including onboard chargers, navigation systems, etc.
Communication Equipment: In communication equipment such as mobile phones and base stations, CP type Mn-Zn power cores are used in key components like filter inductors and antenna matching to improve signal transmission quality.
Fig.1 Fig.2 Fig.3
Fig.4 Fig.5 Fig.6
| Specification | Figure | Dimension(mm) | BP95 | Weight | |||||||||||
| A | A1 | B | C | C1 | C2 | D | D1 | D2 | F | G | InductorsL(uH) | Q | (grams/pair) | ||
| CP47*2.4 | 1 | 47.0±0.4 | 45±0.4 | 2.4±0.1 | 13.10Ref | 11.66±0.3 | 10.80Ref | 3.2±0.15 | 2.0±0.15 | 3.0Ref | 1.0±0.15 | 0.85Ref | 6.30±8% | 135±25% | 21.80 |
| CP49*0.85 | 2 | 49.0±0.5 | ／ | 0.85±0.05 | 9.89±0.2 | ／ | ／ | 2.5±0.20 | 1.875±0.125 | 5.26±0.2 | ／ | ／ | ／ | ／ | 13.60 |
| CP49*1.15 | 2 | 49.0±0.5 | ／ | 1.15±0.05 | 9.89±0.2 | ／ | ／ | 2.5±0.20 | 1.875±0.125 | 5.26±0.2 | ／ | ／ | ／ | ／ | 17.00 |

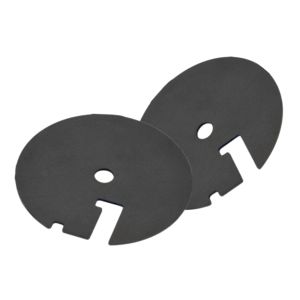

| CP49*22 | 2 | 49.0±0.5 | ／ | 21±0.5 | 9.89±0.2 | ／ | ／ | 2.5±0.20 | 1.875±0.125 | 5.26±0.2 | ／ | ／ | ／ | ／ | 17.00 |
| CP50*1.0 | 3 | 49.5±0.5 | ／ | 1±0.1 | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | 14.00 |
| CP50*30.0 | 3 | 49.5±0.5 | ／ | 30±0.5 | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | 14.00 |
| CP50*5.3*1.0 | 4 | 49.5±0.5 | ／ | 1±0.1 | 5.3±0.3 | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | 14.00 |
| CP50*5.3*30.0 | 4 | 49.5±0.5 | ／ | 30±0.5 | 5.3±0.3 | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | ／ | 14.00 |
| CP52*47*0.8 | 5 | 51.5±0.5 | ／ | 0.8±0.1 | 46.5±0.5 | ／ | ／ | 43.4±0.5 | ／ | ／ | ／ | ／ | ／ | ／ | 11.50 |
| CP52*47*30.0 | 5 | 51.5±0.5 | ／ | 30±0.5 | 46.5±0.5 | ／ | ／ | 43.4±0.5 | ／ | ／ | ／ | ／ | ／ | ／ | 11.50 |
| CP50*48.5*5.3*30 | 6 | 49.5±0.50 | 48.5±0.5 | 30±0.5 | 5.3±0.3 | 4.95±0.3 | 2.9±0.3 | 14.7ref | 2.90±0.3 | 2.70±0.3 | ／ | 7.5±0.3 | ／ | ／ | 14.00 |
Note:
The test conditions for the AL value are: 1KHz, 0.3V, and 10Ts.
The above are the standard specifications of our company, and we can design according to the special requirements of customers.
